Manufacturer
SUAM Schall- & Akustikmanufaktur GmbH
SUAM Akustikmanufaktur develops and manufactures custom room-acoustic elements made from thermally bonded polyester wadding in Bad Wünnenberg (North Rhine-Westphalia). The range covers ceiling rafts (rectangular, round, free-form), baffles, wall and ceiling absorbers, acoustic art panels, the dekaBel metal cassette absorber, and the modular free-standing screen. The PES core material is binder-free, fully recyclable and meets fire class B1 per DIN 4102. Certified to OEKO-TEX Standard 100 (test no. 94.0.0541).
WebsiteSUAM Wall and Ceiling Absorber
Wall and Ceiling Absorber
Description

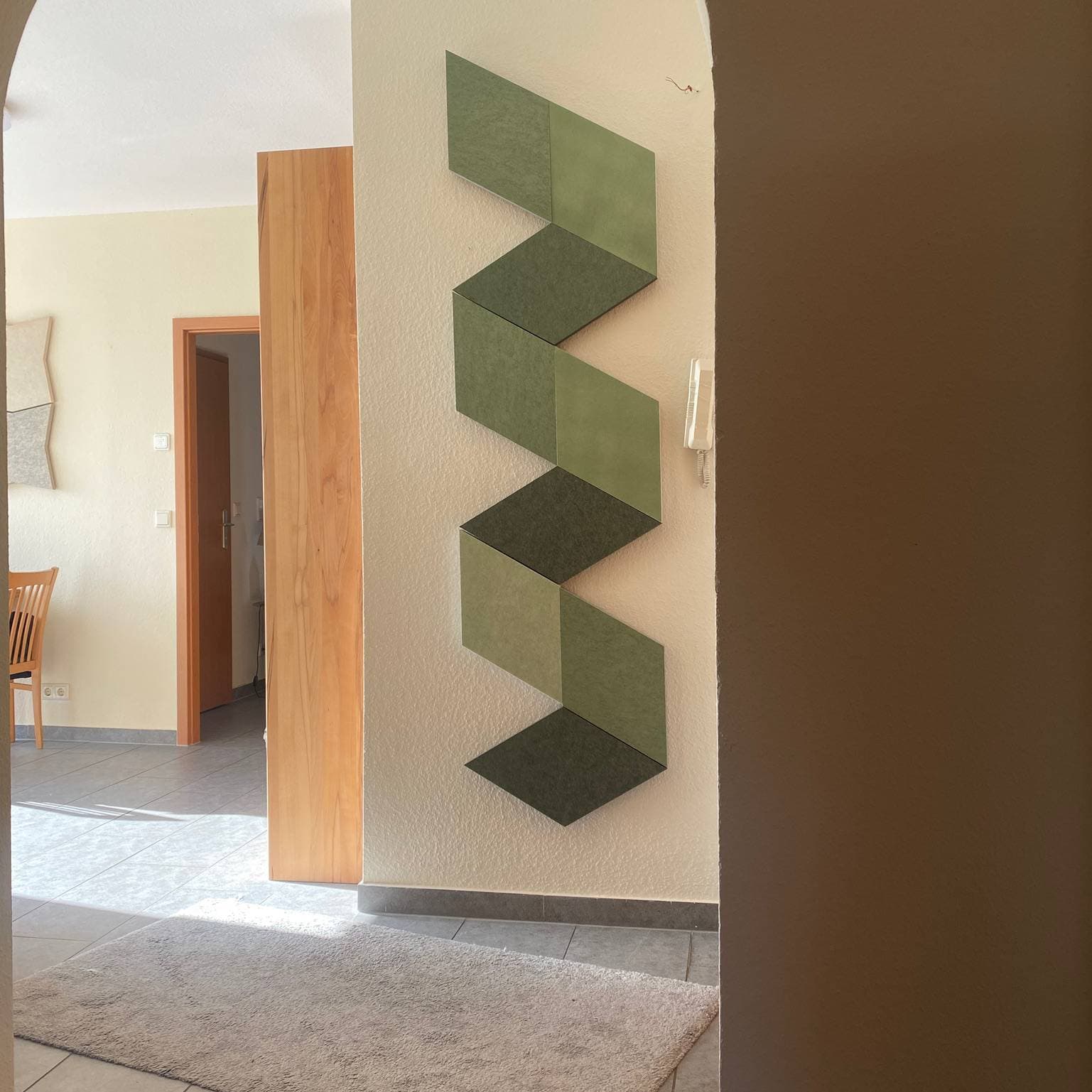

The SUAM wall and ceiling absorber is the direct-mount variant of the polyester wadding platform. It is mounted on existing surfaces and is particularly useful in group rooms, kindergartens, and schools with high background noise levels. Dimensions up to 2400 × 1600 mm, material thickness 50 or 80 mm, individual special shapes possible. At least 60% recycled content, 100% recyclable, B1 according to DIN 4102. Mounting: Magnet, mechanical fastening, adhesive bond, or frame/system mounting.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 3 variants
Frequency values
αp per ISO 11654
| f (Hz) | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|
| αp | 0.80 | 0.95 | 1.00 | 0.95 | 0.95 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 57 mm gesamt | αw0.95 | |
| 85 mm gesamt | αw0.95 | |
| 32 mm gesamt | αw0.90 |
Absorber class: A
Institute: Werte from Hersteller-Datenblatt (Prüfzeugnis ISO 354 / ISO 11654)
Measurement date: 2022-09-15
Dimensions: PE25 (50 mm, 2.800 g/m²)
Application: Wand-/Deckenmontage, 1 cm Abstand, gerahmt
