Manufacturer
SUAM Schall- & Akustikmanufaktur GmbH
SUAM Akustikmanufaktur develops and manufactures custom room-acoustic elements made from thermally bonded polyester wadding in Bad Wünnenberg (North Rhine-Westphalia). The range covers ceiling rafts (rectangular, round, free-form), baffles, wall and ceiling absorbers, acoustic art panels, the dekaBel metal cassette absorber, and the modular free-standing screen. The PES core material is binder-free, fully recyclable and meets fire class B1 per DIN 4102. Certified to OEKO-TEX Standard 100 (test no. 94.0.0541).

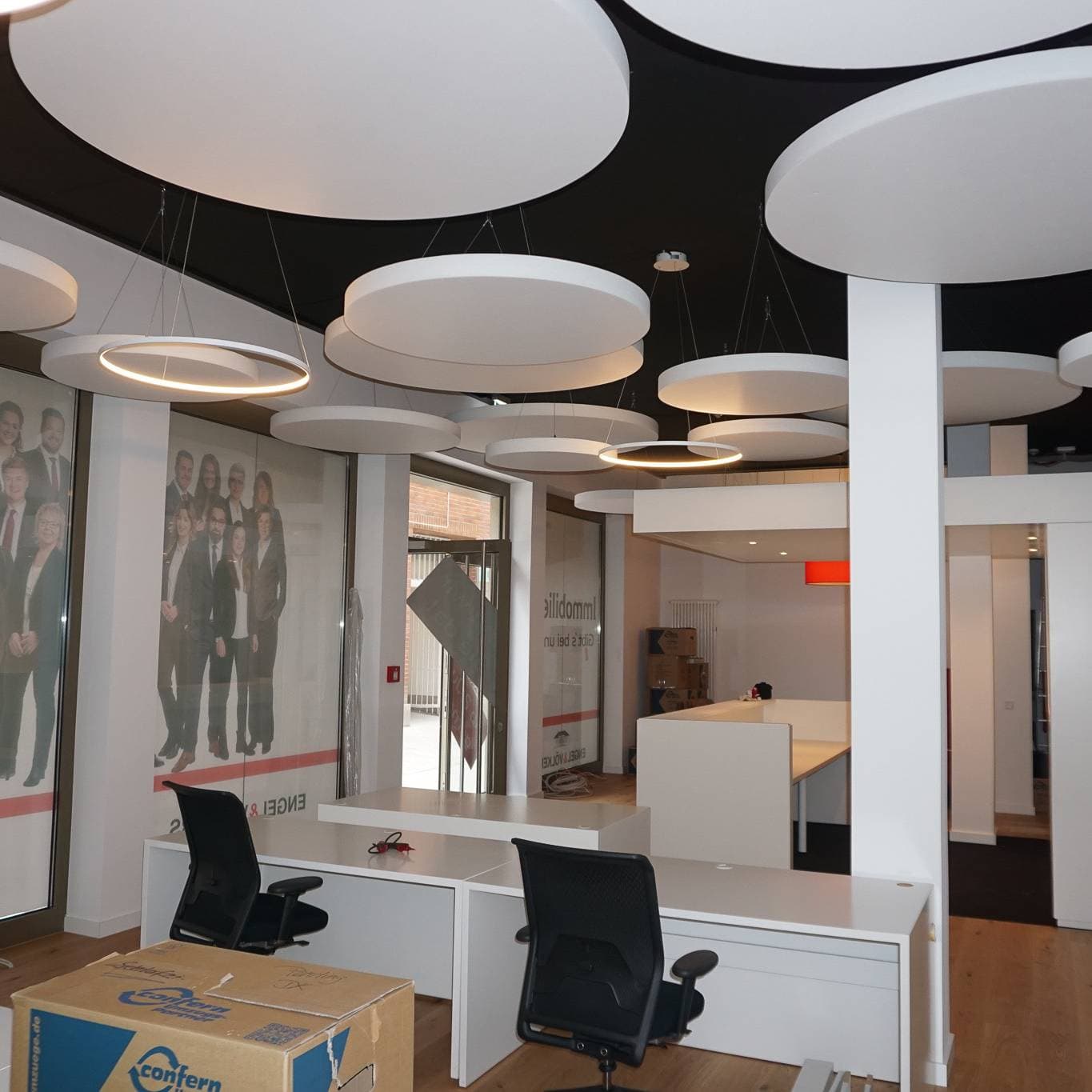

WebsiteSUAM Ceiling Raft with Built-in Components
Ceiling Raft with Built-in Components
Description
SUAM ceiling rafts can be designed as carriers for lighting, flat-panel speakers, built-in speakers, or infrared heating panels. The PES surface cut-out is prepared for the desired elements; the partner solution for lighting is LAS-Systeme, optionally with corona lighting. Material and carrier system correspond to the rectangular ceiling raft: 80 mm PES core, binder-free, B1. Mounting: cable suspension with max. 4 cables or screw fastening. Wireless control possible without additional installations.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
Aobj nach ISO 354 (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 1.15 | 2.70 | 2.85 | 4.00 | 4.85 | 5.35 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Room volume: 37.5 m³
Object area: 2.88 m²
Measurement date (354): 2020-10-07
