Manufacturer
SUAM Schall- & Akustikmanufaktur GmbH
SUAM Akustikmanufaktur develops and manufactures custom room-acoustic elements made from thermally bonded polyester wadding in Bad Wünnenberg (North Rhine-Westphalia). The range covers ceiling rafts (rectangular, round, free-form), baffles, wall and ceiling absorbers, acoustic art panels, the dekaBel metal cassette absorber, and the modular free-standing screen. The PES core material is binder-free, fully recyclable and meets fire class B1 per DIN 4102. Certified to OEKO-TEX Standard 100 (test no. 94.0.0541).
WebsiteSUAM Acoustic Picture
Acoustic Picture
Description

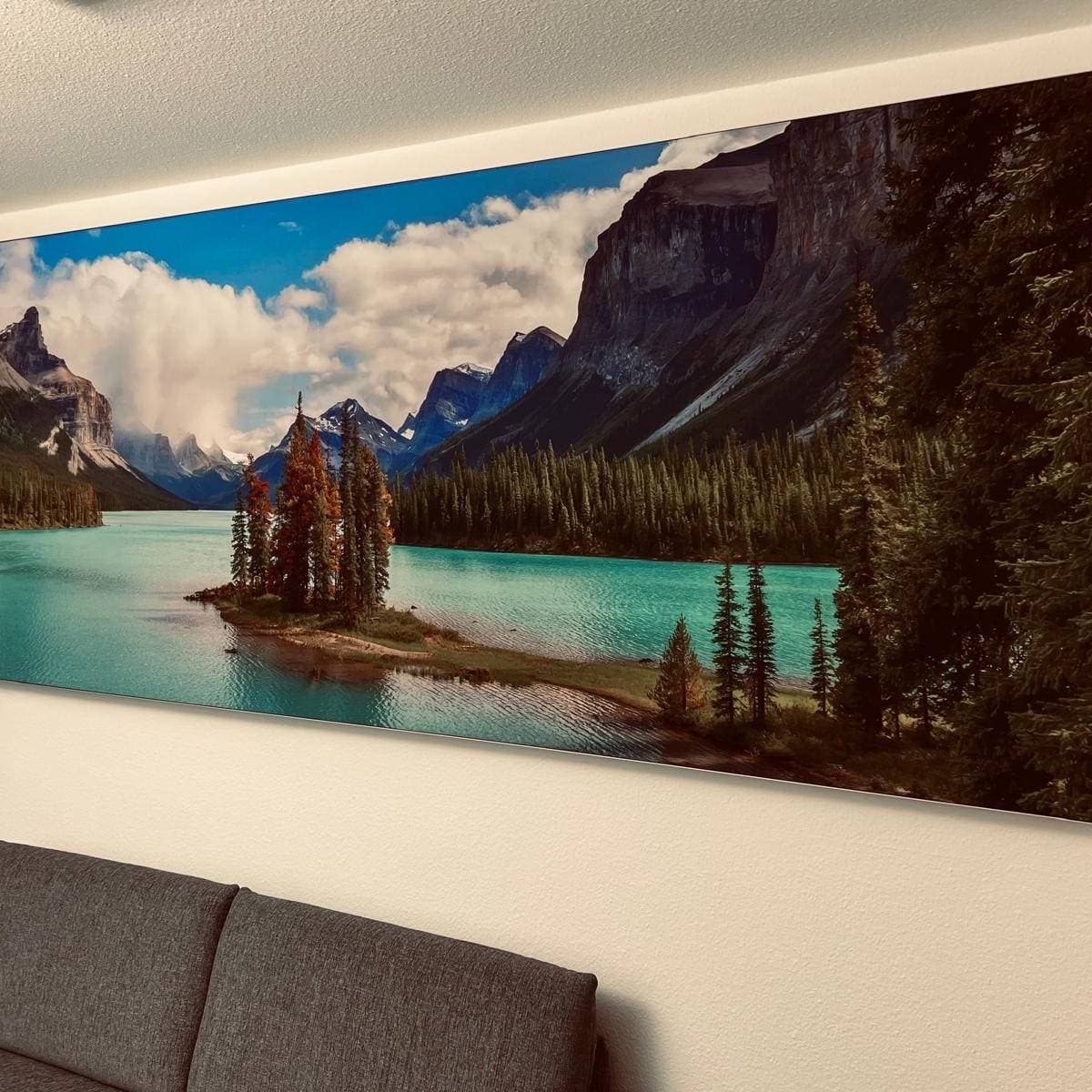

The SUAM acoustic picture is a fabric-covered absorber in a stretcher or aluminum frame design. The visible layer consists of Finett Acoustic needle-punched non-woven (7 mm, 1700 g/m²) with an open fiber structure; the absorber core behind it is SUAM polyester wadding. The fabric covering is interchangeable and allows for quick motif changes without replacing the absorber. Custom motifs according to specifications, optionally with backlighting for large-scale wall murals. Mounting: directly on wall or ceiling.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 2 variants
Frequency values
Aobj per ISO 354 · third-octave band (m²)
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| Aobj | 0.29 | 0.48 | 1.00 | 0.89 | 1.21 | 1.83 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 50 mm Absorber | Aobj2.07m² | |
| 40 mm Absorber | Aobj2.00m² |
Institute: SUAM-Eigenmessung in Hallkabine
Measurement date: 2022-09-15
Object area: 1.94 m²
Dimensions: 1.000 × 1.940 mm (Datenblatt-Prüfobjekt)
