Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH SkyLine Design Acoustic Column

SkyLine Design Acoustic Column

Freestanding

Description

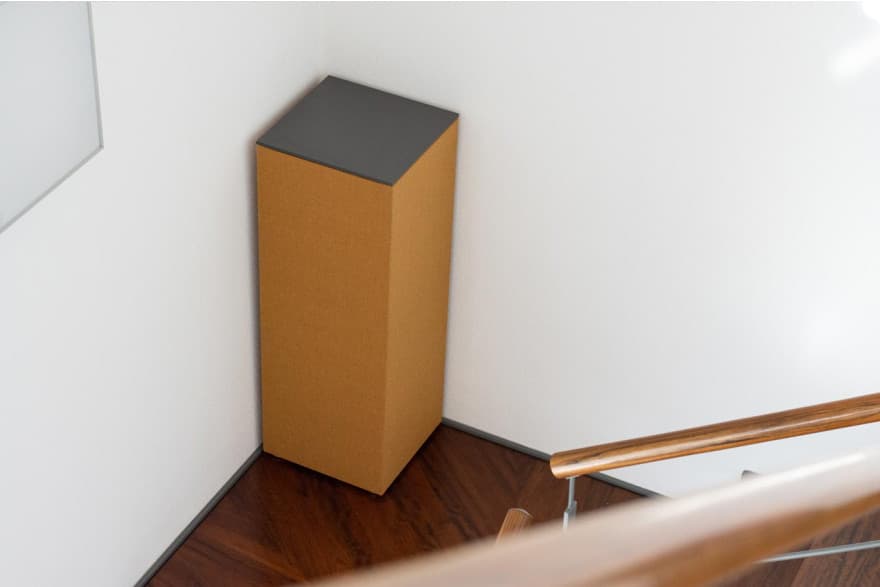

SkyLine is a design-oriented corner floor absorber for small to medium-sized rooms. Placed preferably in the room corners, the fabric-covered column also removes low-frequency sound components from the room, where wall and ceiling surfaces (such as glass walls) are not available.

Technical data

Material: Core of flame-retardant acoustic material
Surface: fabric covering
Up to fire class: DIN 4102 B1 (core)
Colours: according to colour chart

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

Aobj
1.40
at 1 kHz

Frequency values

Aobj per ISO 354 · octave band (m²)

f (Hz)1252505001k2k4k
Aobj0.831.331.571.401.231.13

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

CompareValue
Aobj1.40
Aobj0.97

Institute: Müller-BBM, Planegg

Measurement date: 2015-11-10
