Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH QuietLine Ceiling Raft

QuietLine Ceiling Raft

CeilingFree-hanging

Description

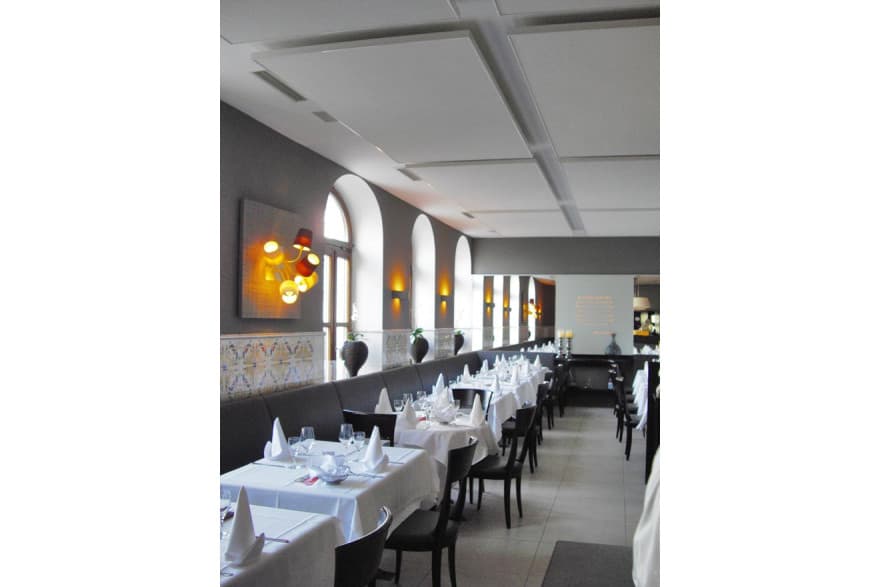

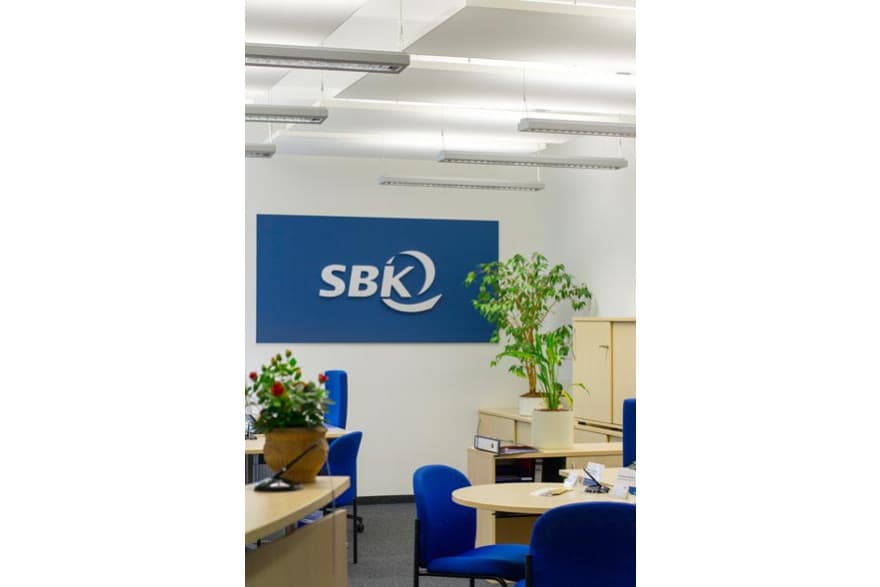

The QuietLine Ceiling Raft is a self-supporting acoustic element with a continuous aluminium frame. It is suspended using link chains, steel cables, or magnets; a larger distance from the ceiling improves absorption in the lower frequencies and is also suitable for concrete-core-activated ceilings.

Technical data

Material: absorber core with continuous aluminium frame
Up to fire class: DIN 4102 B1 (flame-retardant)
Colours: Absorber white; frame natural matt aluminium or white

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 10 variants

Choose size

Aobj
0.61
at 1 kHz

Frequency values

Aobj per ISO 354 · octave band (m²)

f (Hz)1252505001k2k4k
Aobj0.070.360.520.610.640.61

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

CompareValue
260 mmAobj0.61
0 mmAobj0.59
