Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH pure Desk Divider

pure Desk Divider

Freestanding

Description

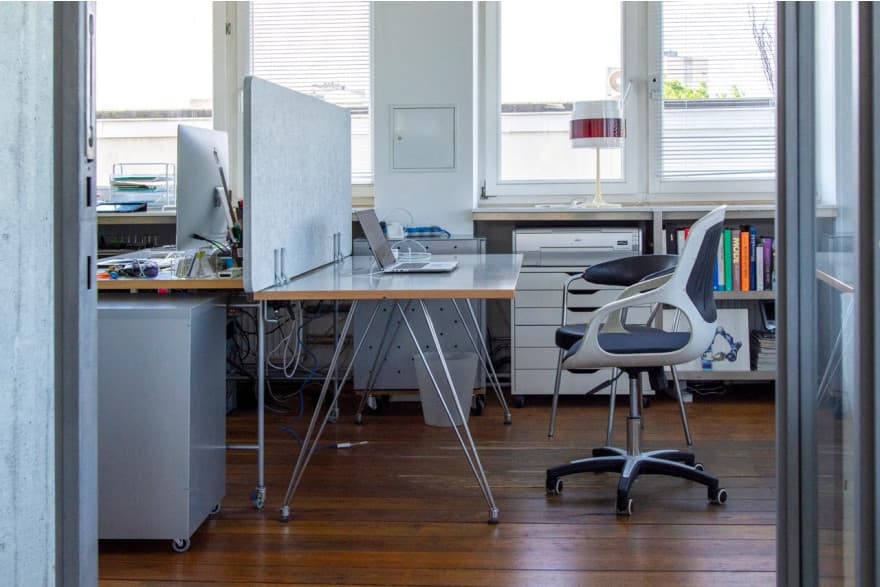

The pure Desk Divider lets you separate workstations both acoustically and visually. The highly absorptive material also has a positive effect on room acoustics, and the surface is pinnable.

Technical data

Material: PES fibres, recyclable

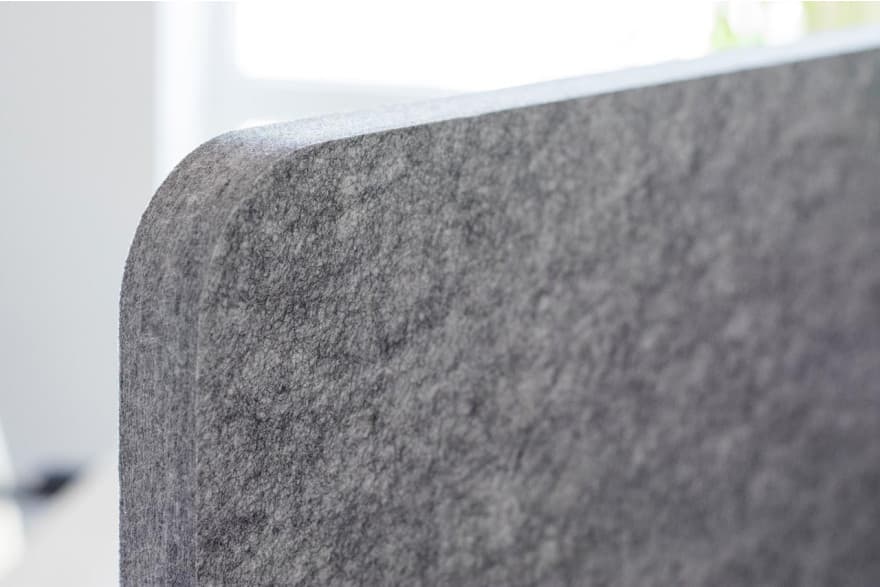

Surface: impact-resistant fibre surface with a felt look
Up to fire class: DIN 4102 B1 (without colour)
Colours: according to colour chart

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 3 variants

Aobj
2.10
at 1 kHz

Frequency values

Aobj per ISO 354 · octave band (m²)

f (Hz)1252505001k2k4k
Aobj0.731.051.582.102.382.51

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

CompareValue
660 × 2.000 mmAobj2.10
660 × 1.800 mmAobj1.89
660 × 1.600 mmAobj1.68
