Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH ConceptLine Wall Element

ConceptLine Wall Element

WallCeiling

Description

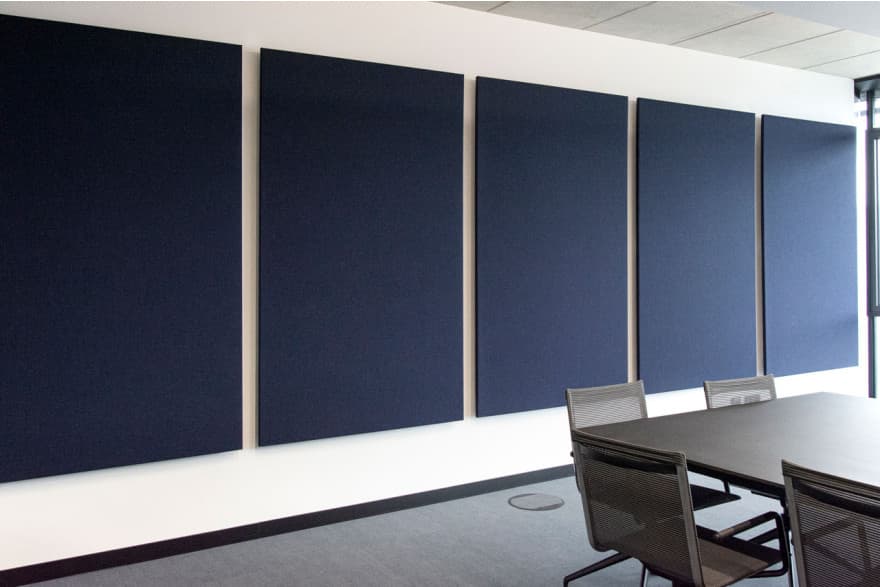

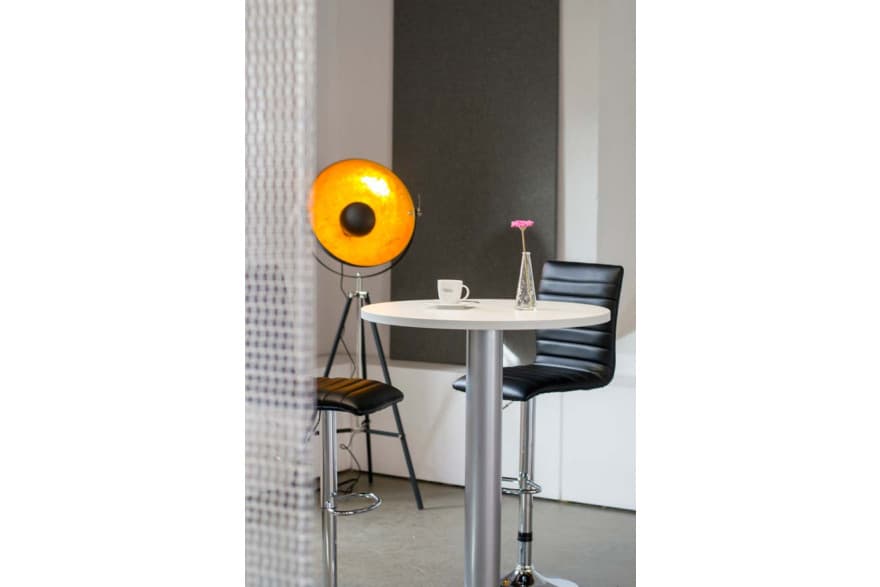

The ConceptLine Wall Element is a highly absorbent, frameless fabric element with free choice of fabric. It reduces the reverberation time in offices, can be adapted to the room concept, and can also be used as a pinboard surface.

Technical data

Material: PES fibre core
Surface: woven microfibre covering
Up to fire class: DIN 4102 B1 (core)
Colours: according to colour chart

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 6 variants

Choose size

Aobj
0.29
at 1 kHz

Frequency values

Aobj per ISO 354 · octave band (m²)

f (Hz)1252505001k2k4k
Aobj0.020.080.200.290.310.29

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Institute: Müller-BBM, Planegg

Measurement date: 2017-07-12
