Schallsauger FRAMELESS PICTURE

Description

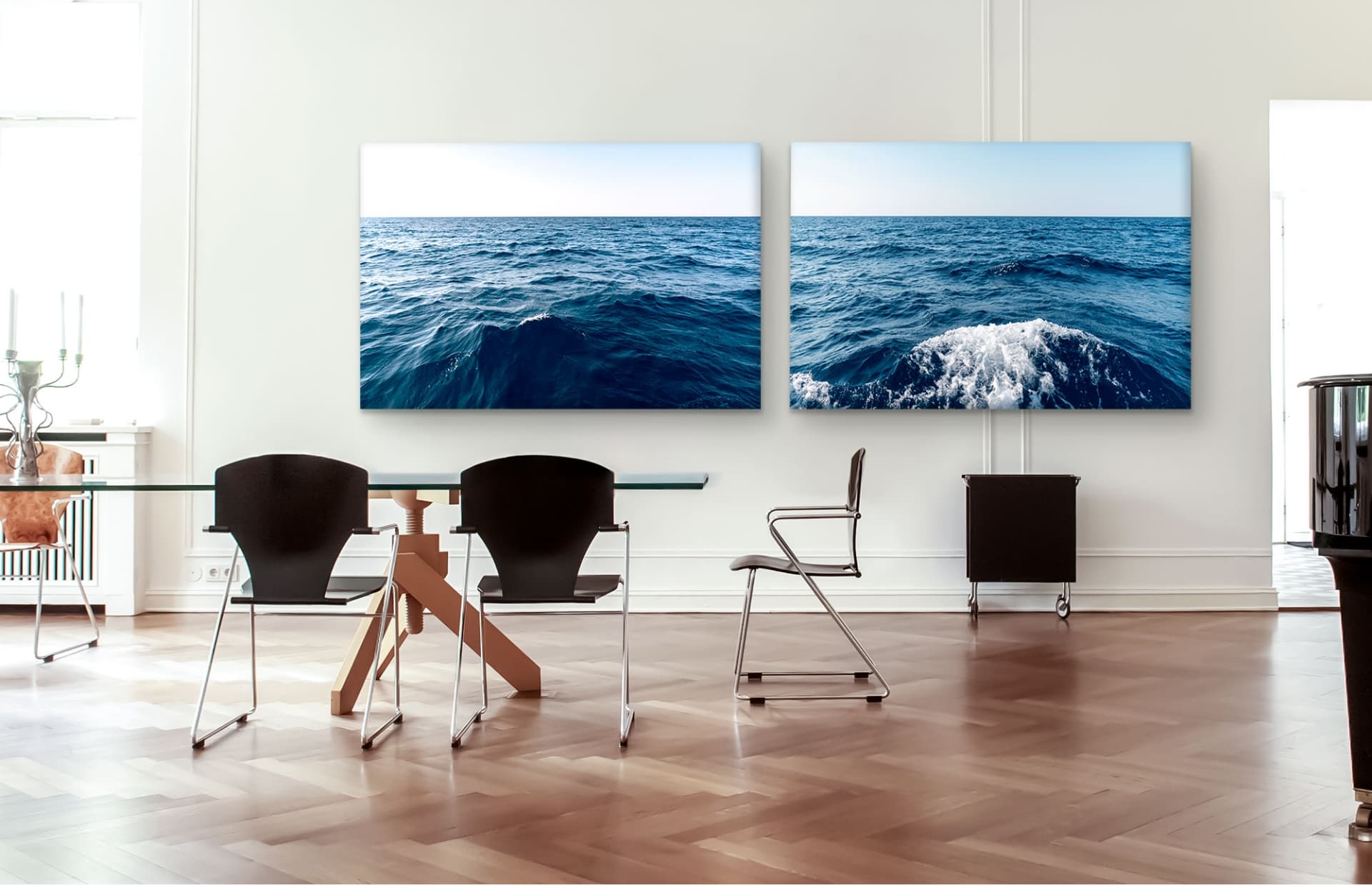

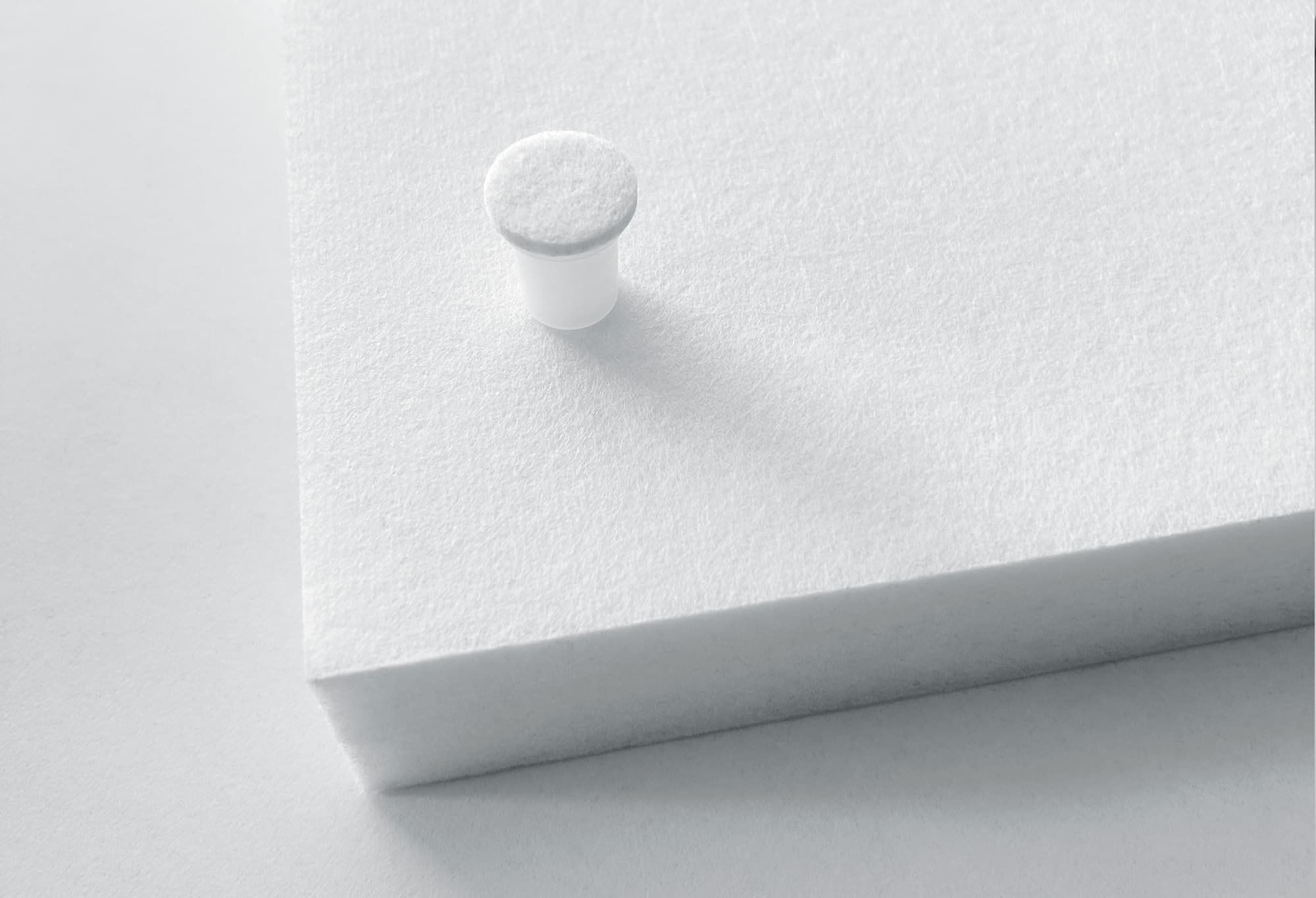

SCHALLSAUGER FRAMELESS PICTURE is a wall-mounted acoustic picture, an acoustic panel with an individually printed motif. Available either with a customer's own motif or with an image motif from Kasper's in-house archive. Up to 100 × 160 cm in format, available in a rectangular or round version. The motif wraps continuously around the side edges (5 cm visible at the sides), producing a frameless, picture-like appearance. Material: SCHALLSAUGER FRAMELESS substrate, a thermally bonded nonwoven made from 100% PES staple fibres, surface weight 3200 g/m², thickness 50 mm. Fabric covering made from 100% PES polyester fabric, 310 g/m², flame-retardant finish (B-s1,d0 per DIN EN 13501-1), UV-resistant per DIN EN ISO 105-B02, finished with thermal sublimation printing. Substrate is 60% made from recycled PET bottles, 100% recyclable. Both materials are certified to Oeko-Tex Standard 100. Rectangular standard formats: 50 × 50 cm, 70 × 70 cm, 65 × 115 cm, 75 × 100 cm, 100 × 100 cm, 100 × 115 cm, 100 × 160 cm. Round version and custom sizes on request. The rectangular variant is alternatively also available with a single-colour fabric covering (see FRAMELESS COLOR). Mounting: wall brackets (WH) with spacers (AH) and felt pads, set FLZWH4 for rectangular panels (4 × wall bracket, 2 × spacer, 2 × felt, 6 × plasterboard screw, 4 × wall plug Ø 6 mm, 4 × Spax 4/40, mounting template), FLZWH3 for round panels. The wall brackets interlock and secure the panel against falling. Alternatively, bonding with hot-melt or assembly adhesive.

Technical data
