Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website

Manufacturer page

Schallsauger FRAMELESS MOVE

Name: Schallsauger FRAMELESS MOVE
Brand: SCHALLSAUGER (KASPER GmbH)

MOVE

Freestanding

Description

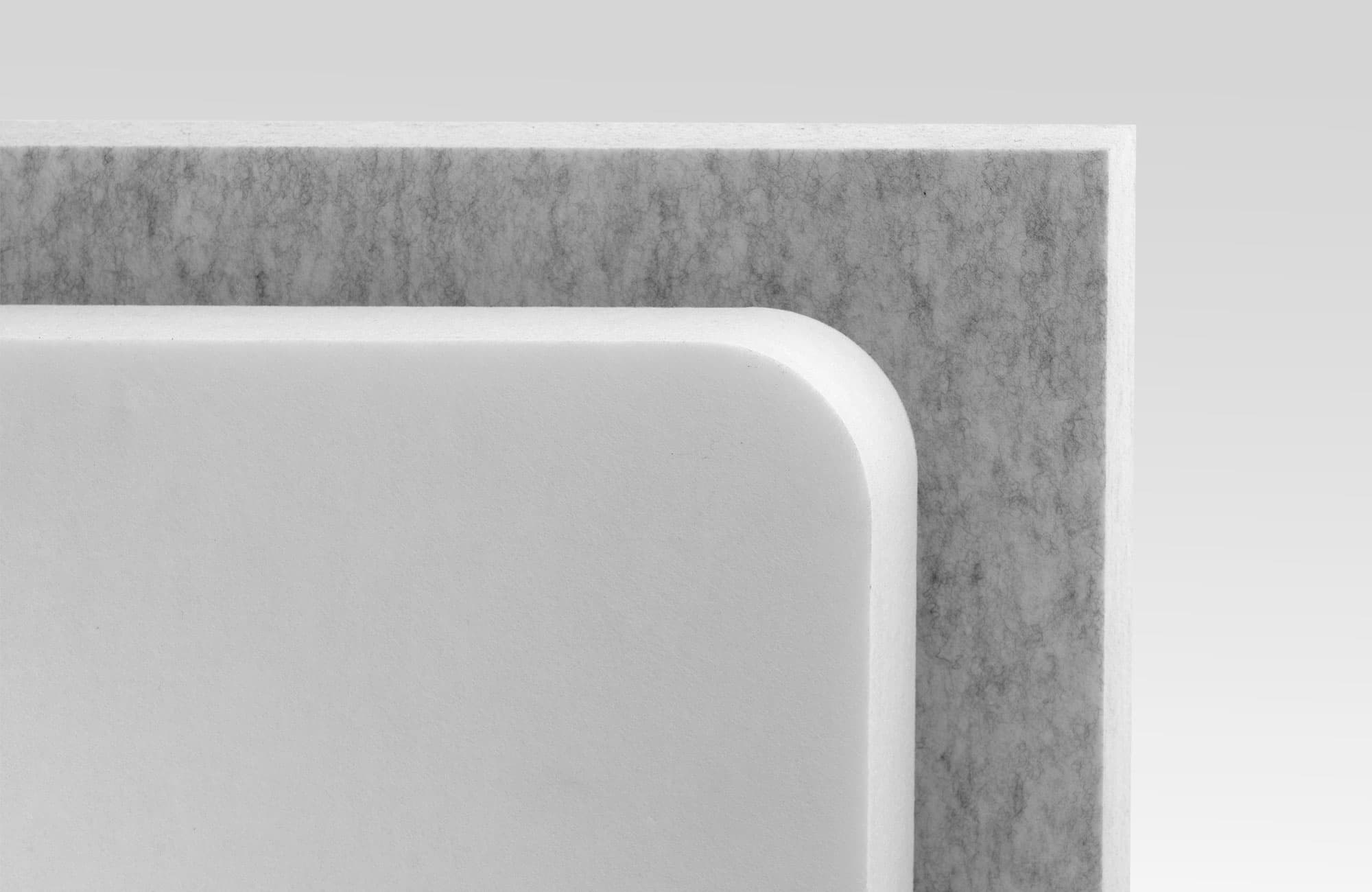

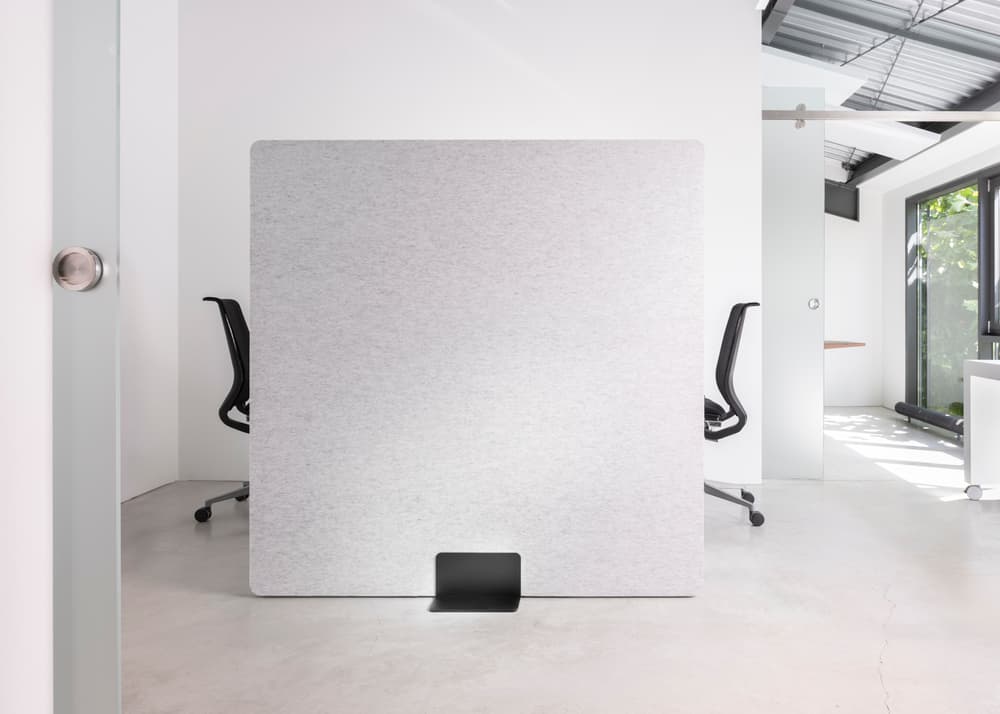

SCHALLSAUGER FRAMELESS MOVE is a free-standing acoustic room divider made of thermally bonded polyester nonwoven. With no frame construction, MOVE can be placed flexibly as a sound and visual screen in open-space offices, coworking spaces, or for temporary setups, and can be repositioned without tools. Two-sided sound absorption: the free-standing panel works acoustically on both sides. Solid base in matt black, footprint approx. 300 × 300 mm. Free-standing panel height up to a maximum of 180 cm; screen dimensions are made to project-specific requirements. Material: SCHALLSAUGER FRAMELESS, thermally bonded nonwoven made of 100 % PES staple fibres, area weight 3200 g/m², thickness 50 mm. 60 % made from recycled PET bottles, 100 % recyclable, fire class C-s2,d0 to DIN EN 13501-1:2018 / B1 to DIN 4102-1. Available in white, mottled light grey, or black, with square or rounded edges. Pinnable surface: notes or notices can be attached directly to the panel. Integrated in the pCon Planner for office planning. 5-year full warranty.

Technical data

Material: Thermally bonded polyester nonwoven (100 % PES staple fibres, 60 % recycled PET, 3200 g/m², 50 mm thickness, no chemical additives). No frame, no fabric covering.

Up to fire class: C-s2,d0 to DIN EN 13501-1:2018 / B1 to DIN 4102-1 (flame-retardant)

Application: Free-standing acoustic room divider for open-plan offices, coworking, foyers, or temporary setups. Visual and sound screen between workstations, can be placed free-standing.

Certifications: Oeko-Tex Standard 100, 60 % fibre content from recycled PET bottles, 100 % recyclable, allergy-friendly, breathable, skin-friendly, mould-growth resistant (DIN EN ISO 846:2019 + DIN IEC 68 Parts 2-10), resistant to vermin infestation and house dust mites, minimum sorption moisture 1.02 % to DIN 52620. 5-year full warranty.

Colours: Panel available in white, mottled light grey, or black. Solid base in matt black.

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw

1.00

Frequency values

αp nach ISO 11654

f (Hz)	63	125	250	500	1k	2k
αp	0.40	0.60	0.90	0.90	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Absorber class:A

Method (354): Measured

Room volume: 391.6 m³

Download test protocol
