Manufacturer

raumAKUSTIKS

raumAKUSTIKS (owner: Helge Herrmann) manufactures custom sound absorbers in Berlin for room acoustics in offices, industrial, retail, hospitality and residential settings. Every AluWall absorber is made to measure: an aluminium frame with a highly absorbent polyester core (ISO-BOND®, thermal conductivity class WLG 040, fire class B1 per DIN 4102), or a glass-wool core for the A2 variant. The visible face is a seamlessly tensioned, flame-retardant fabric in any colour, optionally printed with high-resolution digital artwork (seamless up to 300 cm). Beyond the AluWall system, the range includes acoustic louvres, transparent honeycomb sound shields, microperforated acrylic glass and acoustic curtains. Installation and planning are available throughout Germany as well as in Austria, Switzerland and the Benelux countries.

Website

Manufacturer page

raumAKUSTIKS Grid Ceiling Cushion

Name: raumAKUSTIKS Grid Ceiling Cushion
Brand: raumAKUSTIKS

AluWall Ceiling Cushion for Grid Ceilings

CeilingIntegrated

Description

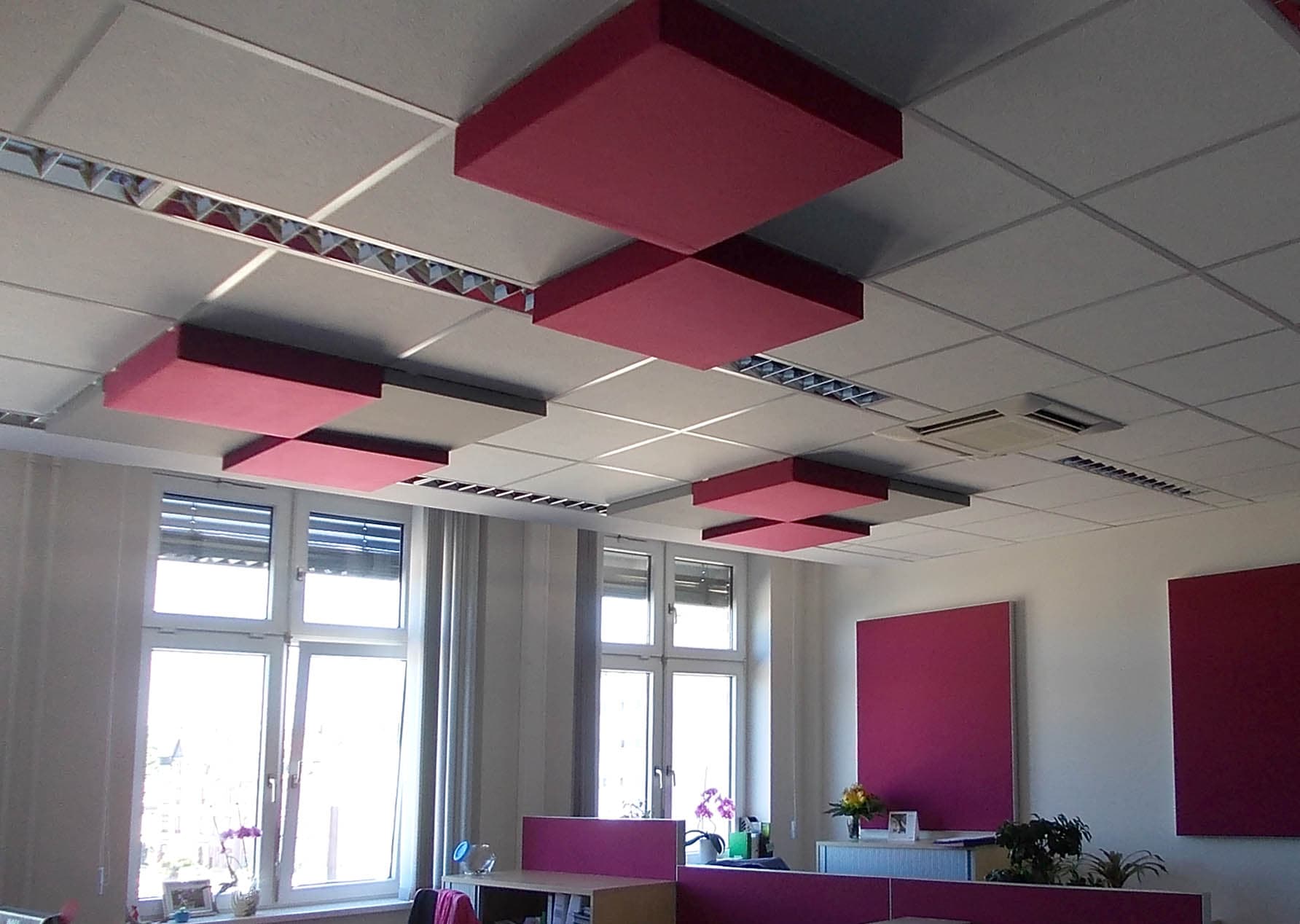

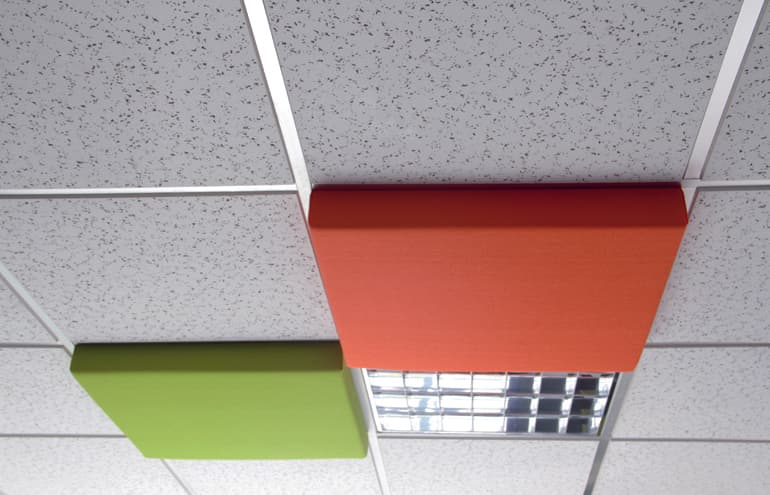

Absorber module in standard grid ceiling formats (e.g., 600 × 600 mm, 625 × 625 mm, 600 × 1200 mm), which is inserted directly into the T-profile of suspended grid ceilings. Aluminum frame and polyester core comply with the AluWall standard. Used as a replacement element for mineral fiber panels to subsequently meet room acoustic requirements in schools, offices, and public buildings.

Technical data

Material: Aluminum frame suitable for T-profiles, 50 mm polyester core

Up to fire class: B1 (core material and fabric covering according to DIN 4102-1, B2 possible). A2 with glass wool core on request

Application: Replacement module for suspended grid ceilings

Certifications: OEKO-TEX Standard 100 test no. 94.0.0541 (core material), building material approval no. Z-23.1.3-278, WLG 0.035 according to DIN 52612, sound-insulating properties > 5 kNs/m⁴ according to DIN 52213, externally monitored by FIW Munich

Colours: Over 45 standard fabric colors (Kvadrat and others), additional collections on request (Gabriel, Camira). Fabric covering interchangeable and washable at 40 °C. Digital print with 150 dpi, seamless up to 300 cm.

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw

0.90

Frequency values

αp nach ISO 11654

f (Hz)	125	250	500	1k	2k	4k
αp	0.20	0.55	0.85	0.90	0.95	1.00
