Manufacturer

ORGANOID

ORGANOID GmbH from Fliess in Tyrol produces natural surfaces from hand-processed raw materials: alpine hay, Wildspitze, flowers and wool felt are compressed into surfaces without added binders, so they keep their scent and their feel. Under the name “Aesthetics & Acoustics” the company runs its own acoustics range. At the heart of the modular products is the Active Core, an absorber board of hemp fibres and binder that is 93.8% biodegradable. Alongside it comes the Infinity slat system on an MDF carrier for wall and ceiling surfaces.

Website

Manufacturer page

Documents

Datasheet

ORGANOID Acoustic Panel Modular

Name: ORGANOID Acoustic Panel Modular
Brand: ORGANOID

ORGANOID Akustik Paneel Modular

WallCeiling

Description

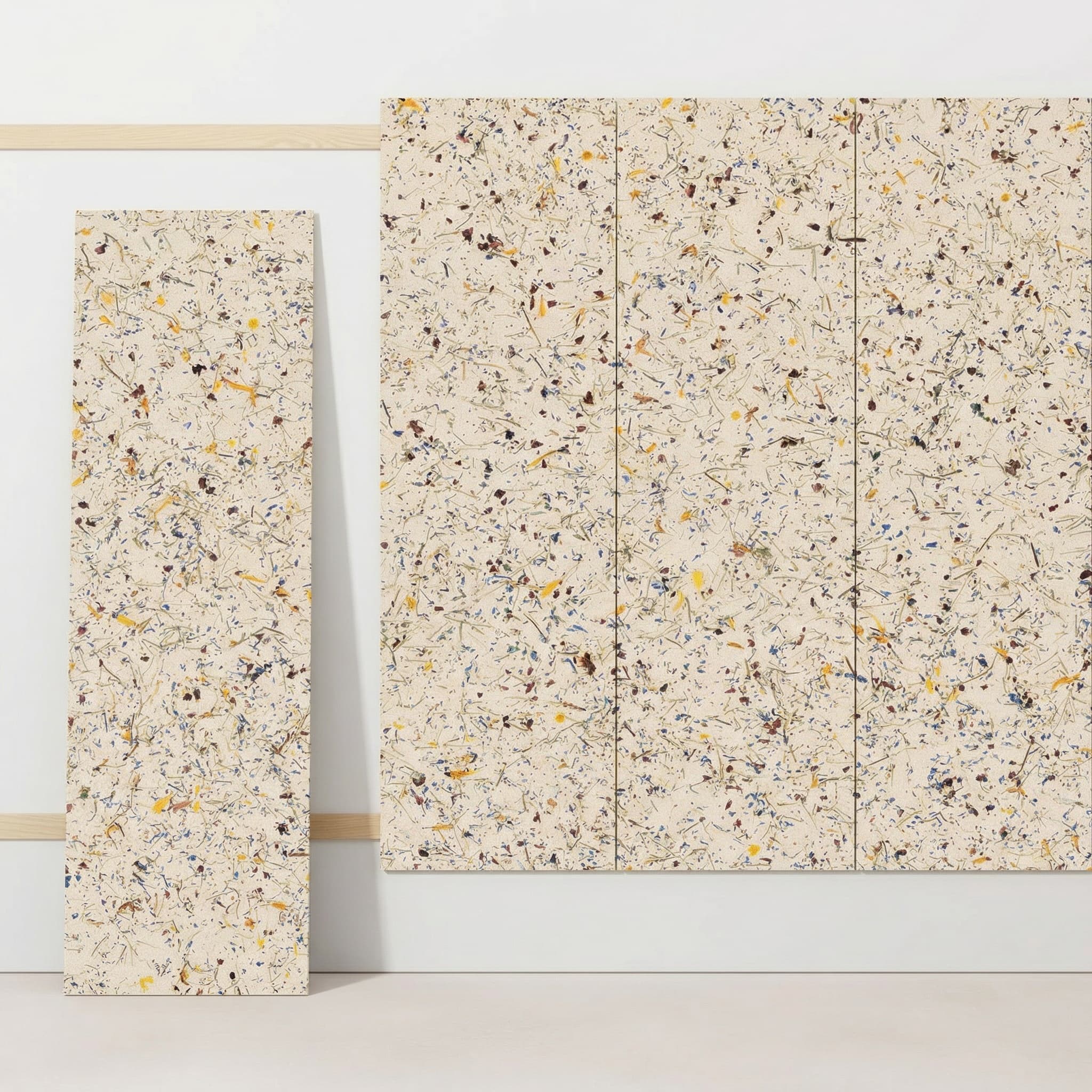

The Acoustic Panel Modular is a large-format absorber board with a hand-processed ORGANOID natural surface. Available in 10 mm and 20 mm core thickness, in the formats 580 × 2320 mm and 1160 × 2320 mm and in the surfaces ALMWIESE light, PURE and WOOL. The Active Core absorber core is made of hemp fibres and a binding component and is free from harmful substances. It can be punched, sawn, water-jet cut or CNC-machined. All 25 listed build-ups have been measured: direct mounting, 40 mm sheep-wool insulation as backfill, and cavities from 20 to 190 mm, either empty or partly filled.

Technical data

Material: ORGANOID natural surface on an Active Core absorber core

Application: Wall & ceiling

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 25 variants

Choose thickness

αw

1.00

Frequency values

αp per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
αp	0.30	0.70	1.00	1.00	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

		Value
40 mm cavity, fully filled with 40 mm sheep-wool insulation	PURE	αw1.00
40 mm cavity, fully filled with 40 mm sheep-wool insulation	ALMWIESE light	αw1.00
40 mm cavity, fully filled with 40 mm sheep-wool insulation	WOOL	αw1.00
190 mm cavity, of which 40 mm sheep-wool insulation	PURE	αw1.00
190 mm cavity, of which 40 mm sheep-wool insulation	ALMWIESE light	αw0.95
190 mm cavity, of which 40 mm sheep-wool insulation	WOOL	αw0.95
190 mm cavity, unfilled	PURE	αw0.90
190 mm cavity, unfilled	ALMWIESE light	αw0.90
190 mm cavity, unfilled	WOOL	αw0.90
Directly on the substrate, no cavity	ALMWIESE light	αw0.30
Directly on the substrate, no cavity	WOOL	αw0.30
Directly on the substrate, no cavity	PURE	αw0.25

Absorber class: A

Test report: FRILAB-20260506-90-01

NRC: 0.95

Institute: Akustiklabor der Fuchs Raumingenieure, Nuremberg

Measurement date: 2026-03-10

Room volume: 391.6 m³

Object area: 11.9 m²
