Manufacturer
MW Acoustics
Acoustic elements, absorbers, diffusers, ceiling rafts and studio solutions from MW-Acoustics, imported from the public web catalogue for internal data curation.
WebsiteDeckensegel Living
Deckensegel Living
CeilingFree-hanging
Description

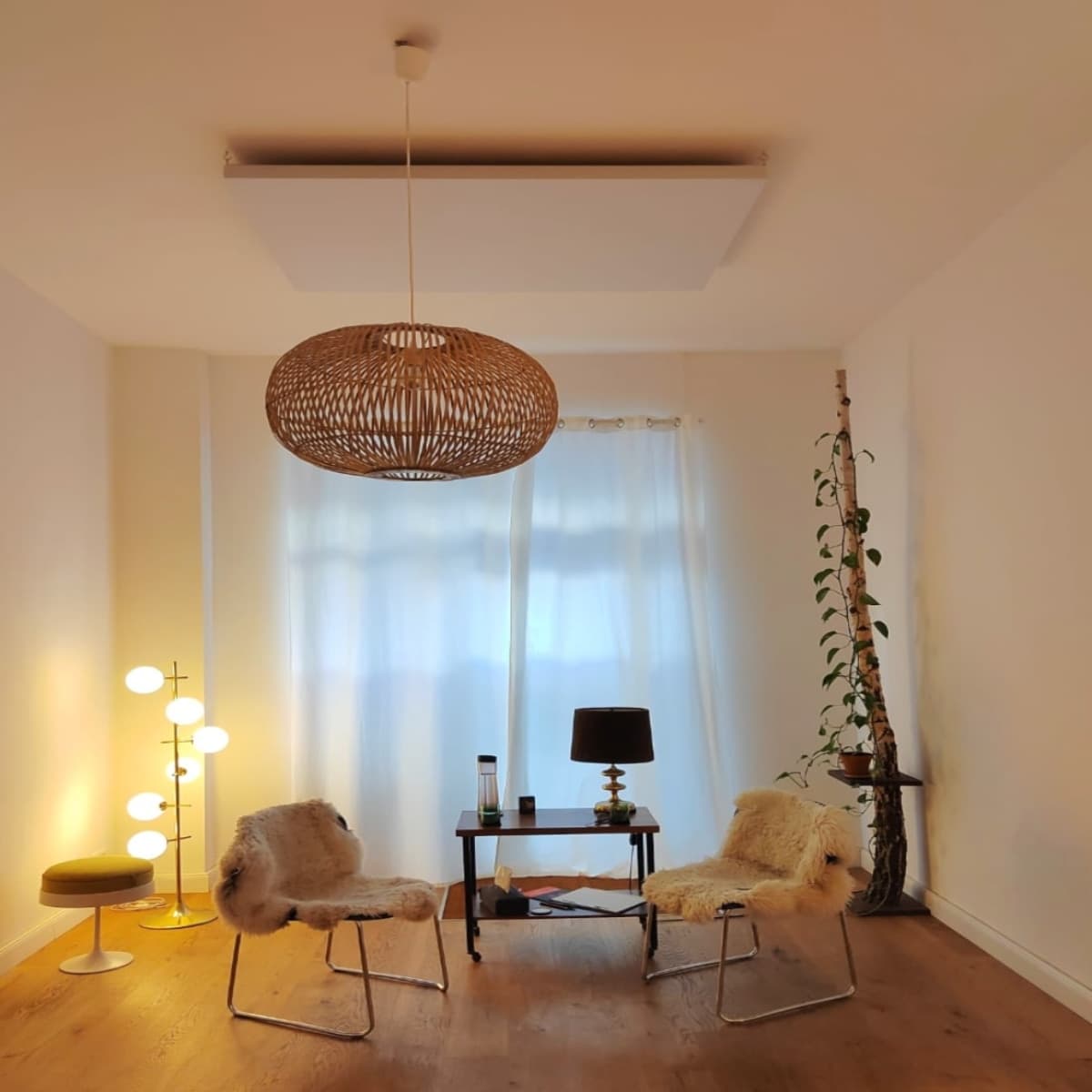

Abgehängtes Deckensegel aus 5 cm Basotect® G+ auf MDF. Vier Größen.
Technical data
Material: Basotect® G+, 50 mm
Measurement data
Sound absorption
ISO 354 – reverberation chamber
αw
0.85
Frequency values
αp nach ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.20 | 0.55 | 0.90 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Absorber class:B
Method (354): Analytically calculated
NRC: 0.85
