Manufacturer
freiraum Akustik
Since 2004, freiraum Akustik has developed custom-made acoustic art panels, room dividers, desk partitions and ceiling rafts for offices, medical practices, meeting rooms and residential spaces. The focus is on combining effective sound absorption with individual design, art motifs, custom colours and personal acoustic consulting all the way through to installation.
WebsiteDesk Partitions
Desk Partitions
Description

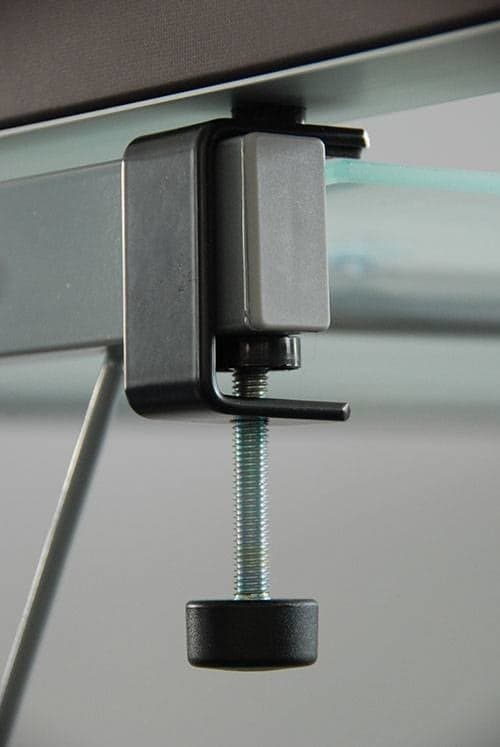

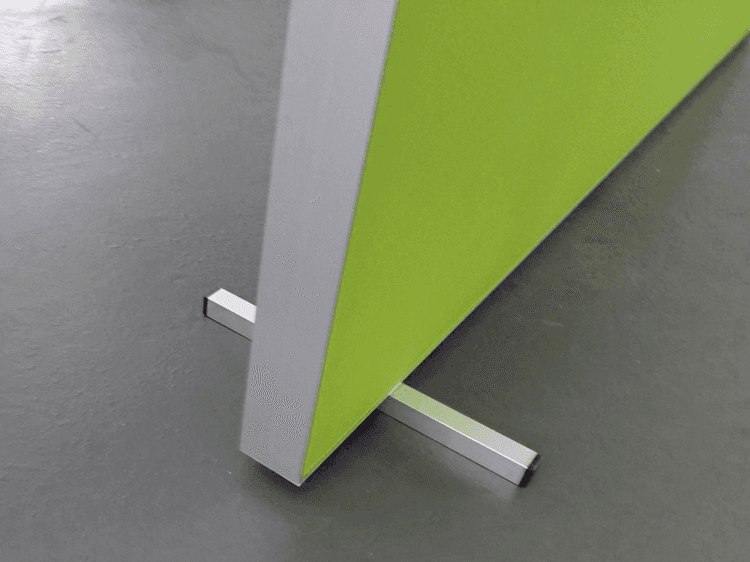

Desk partitions structure workplaces and absorb sound directly at the source. They acoustically and visually calm rooms and can be color-coordinated with existing interiors. All products are manufactured individually according to selection and to measure. The variants shown serve as suggestions; Freiraum Akustik also realizes larger special formats on request. Desk partitions are supplied with desk clamps as standard; alternatively, feet are available for flexible positioning on tables and sideboards.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
αp nach ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.40 | 0.70 | 0.95 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Room volume: 391.6 m³
Object area: 11.29 m²
Measurement date (354): 2018-02-23
