Manufacturer
B11
B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.
WebsiteB11 Wing on Table

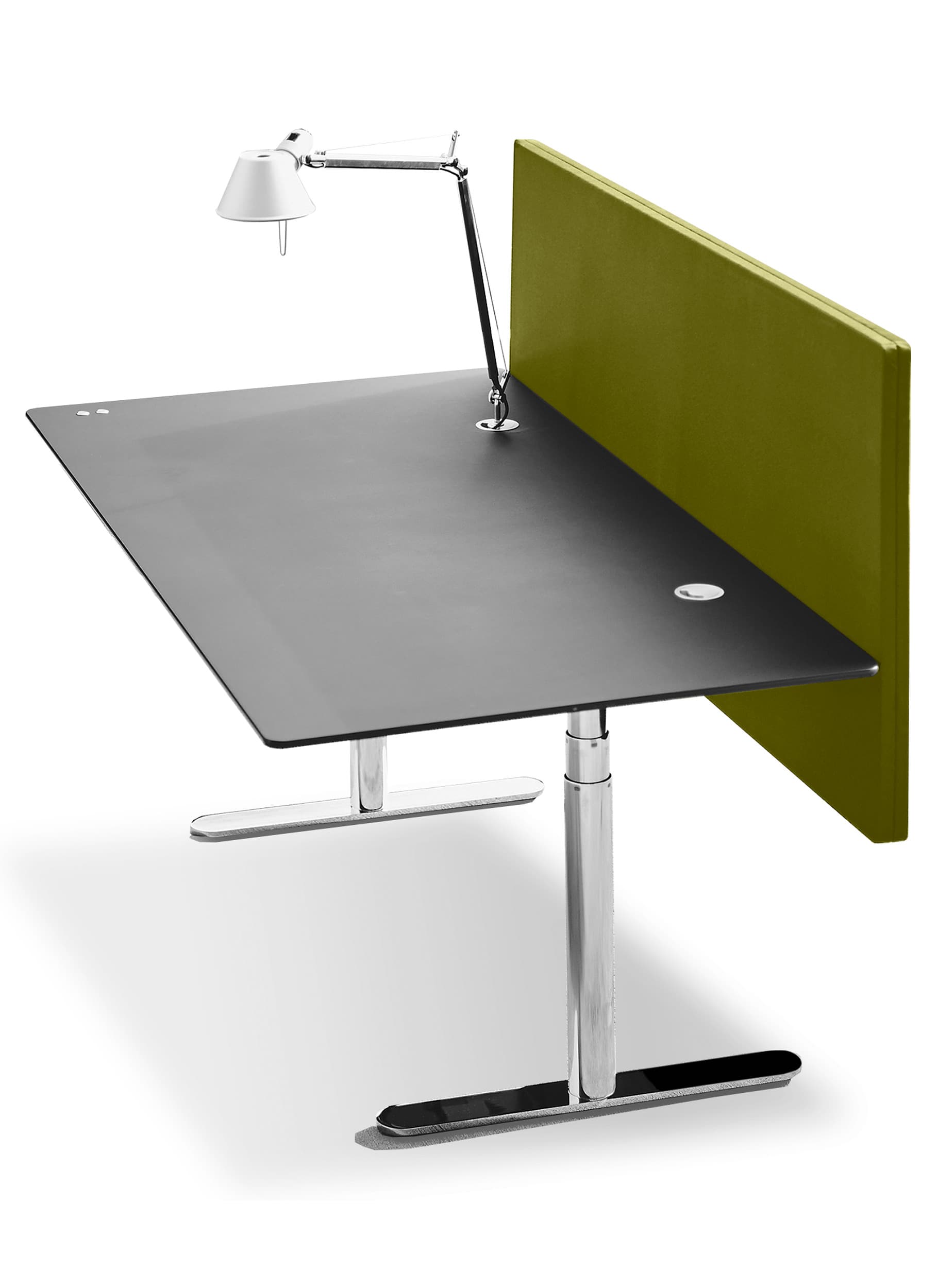

Wing on Table
Description
WING ON TABLE puts acoustics right at the workplace — a light add-on that floats above the desk and decouples neighbouring seats audibly and visually. Quickly mounted and extendable at any time.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
Aobj nach ISO 354 (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 0.50 | 0.90 | 1.10 | 1.40 | 1.50 | 1.60 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Measurement date (354): 2021-07-01
