Manufacturer
B11
B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.
WebsiteB11 Flying Wall
Flying Wall
Description

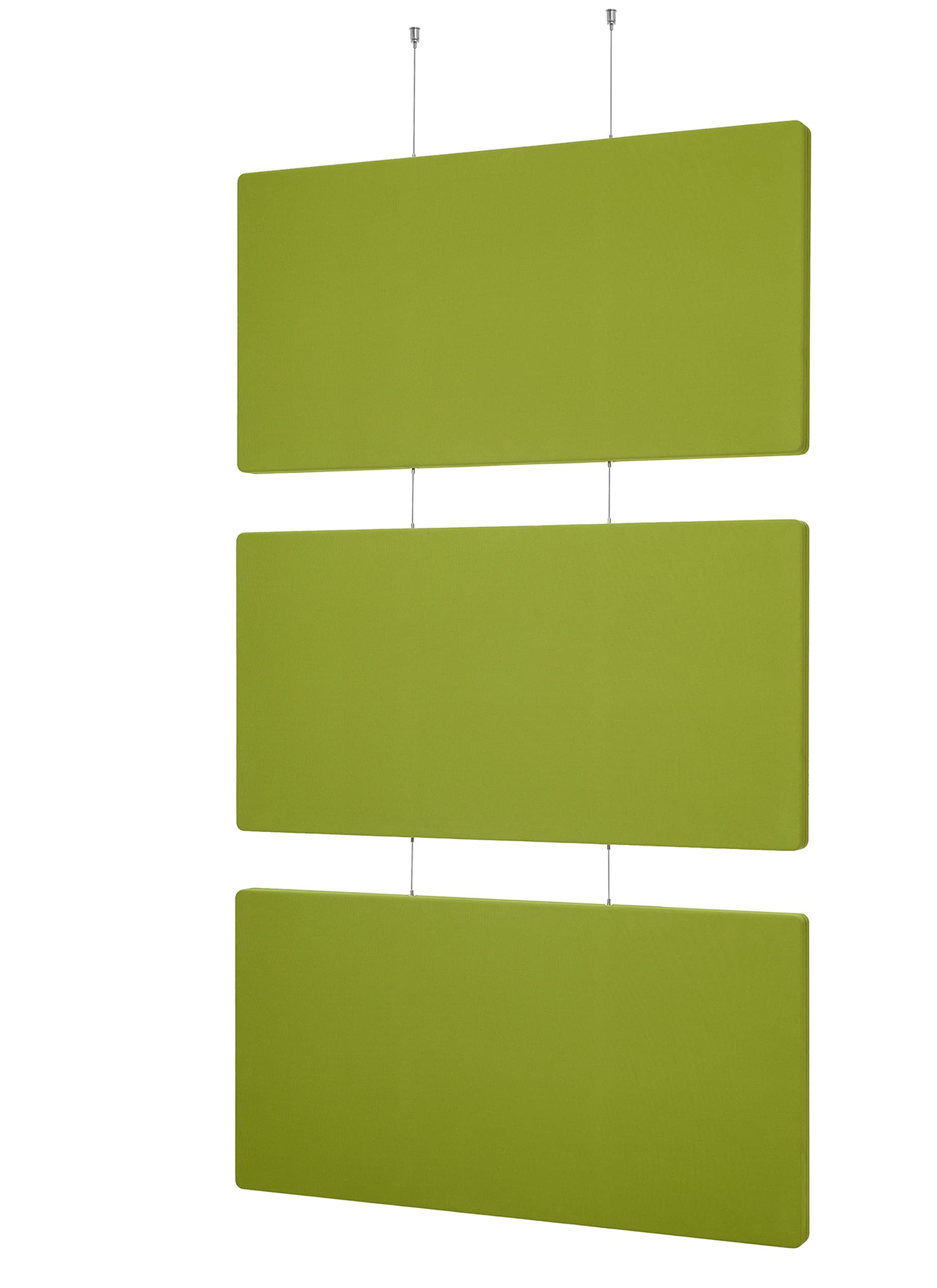

The FLYING WALL zones open areas from above — three suspended panels that float as an airy divider over workstations and meeting islands. They create calm and loose separation without using up floor space.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
Aobj nach ISO 354 (m²)
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| Aobj | 0.60 | 0.90 | 1.30 | 1.40 | 1.90 | 2.60 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Room volume: 199.6 m³
Measurement date (354): 2018-08-20
Test report: M103132/8
